Introduction
The basic production method for Precise 3-axis CNC Machining Services depends on CNC machining. Companies operating in aerospace and automotive fields need to pick suitable machining methods. That determine both production expenses along with operational excellence. It also determine standards and final product quality.
Two fundamental CNC machining procedures consist of three-axis operations. They are joined by five-axis machining operations. Determine your requirements first to pick the best option. The following table will assist your choice selection process.
What is 3-Axis Machining?
The tool moves according to measurements determined by three independent directions. These directions include X for left-right movements, Y for front-back movements, and Z for up-down movements.
- X-axis (left to right)
- Y-axis (front to back)
- Z-axis (up and down)
Common Applications of 3-Axis Machining
- Simple parts with flat surfaces
- Basic drilling and milling operations
- Low-cost, high-volume production

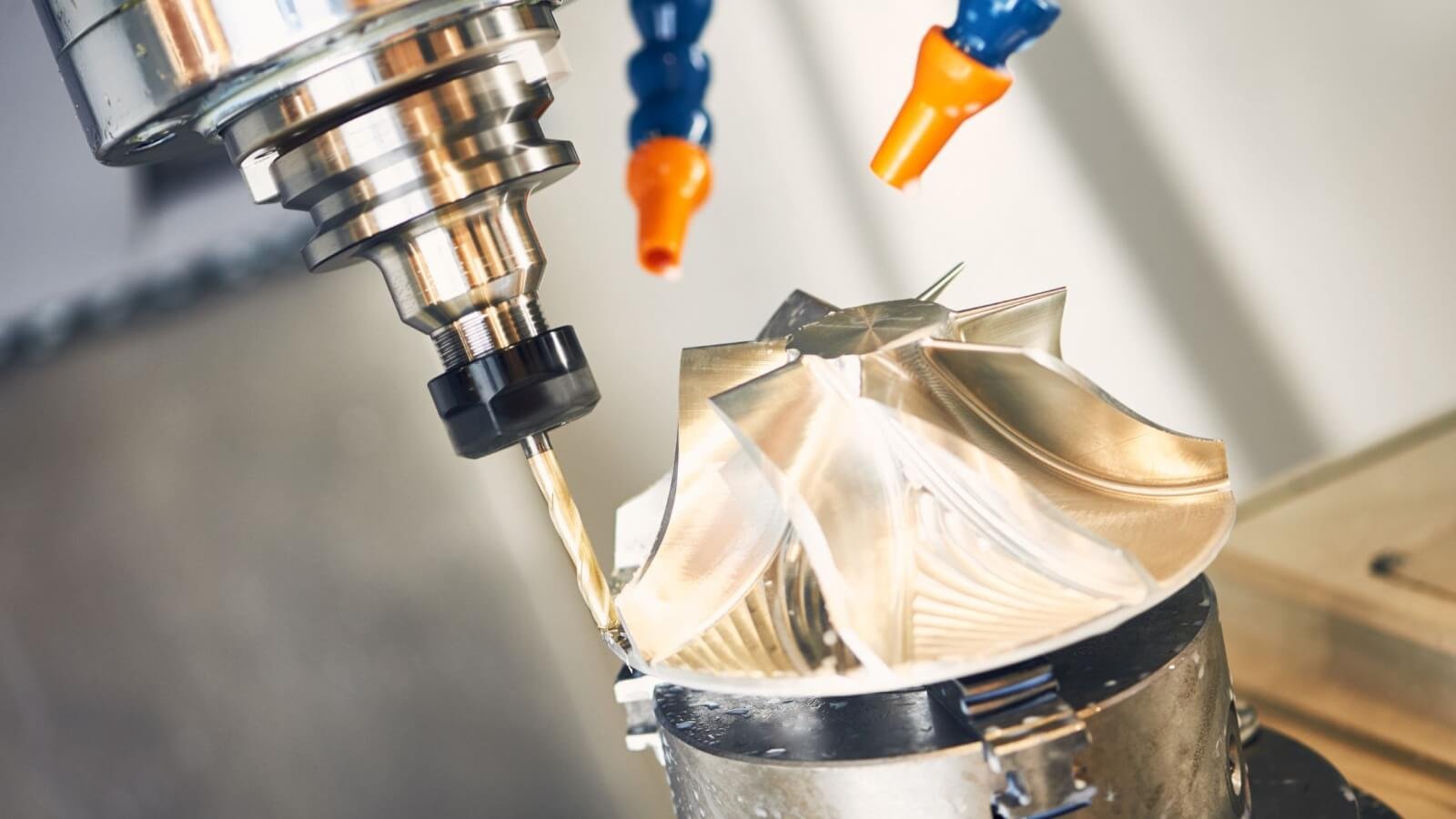

What is 5-Axis Machining?
The cutting tool of advanced 5-axis Machining moves across five active motion axes at the same time. The tool enables X Y Z rotational movement. While more separate axis rotation functions work in unison.
- A-axis (tilting movement)
- B-axis (rotating movement)
Common Applications of 5-Axis Machining
- Complex aerospace components
- Medical implants with intricate designs
- High-precision automotive parts
Key Differences Between 3-Axis and 5-Axis Machining
-
Motion and Axes of Movement
The exclusive linear motion of a 3-axis machine functions between three distinct directions.
5-axis machines provide their users with extended rotational functions. It allows them to machine parts from many directional approaches simultaneously.
-
Complexity of Machining
Standard components that have smooth, flat surfaces get the most advantage from using a 3-axis machine system.
A 5-axis machine can handle the entire processing of 3D parts in one go. This means it can effortlessly create complex shapes. It includes those tricky undercuts and intricate facets. Imagine being able to craft detailed designs without needing to switch tools or setups. It really streamlines the whole process!
-
Accuracy and Precision
The precise output from three-axis machines involves quite a few setup steps, which can lead to some errors in accuracy.
The 5-axis machining process reduces errors by eliminating the need for multiple movements of the hardware. This means that the machine can make more precise cuts in one go, which leads to better accuracy and less chance for mistakes. Imagine trying to make a detailed sculpture with your hands; the fewer times you have to adjust your tools, the smoother the process will be. That’s exactly what 5-axis machining does—it streamlines the work and helps create high-quality results.
-
Speed and Efficiency
The process duration increases because operators need to physically change the machine positions across three different directions.
A 5-axis machine installation lowers production periods while simultaneously boosting operational speed rates.
-
Cost Considerations
The purchase cost for 3-axis machining equipment requires a lower initial investment than alternative machining devices.
Industrial production organizations can lower setup and labour expenses because of the higher investment in 5-axis machines.
-
Surface Finish and Quality
The completion of 3-axis machining projects that need smooth surface finishes requires supplemental finishing steps due to unforgiving capabilities.
5-axis machining produces high-quality finishes because it completes production requirements by employing fewer production operations.
-
Tool Accessibility and Design Flexibility
Because 3-axis manufacturing tools do not reach positions at various angled configurations.
The operators who use 5-axis machining benefit from more design possibilities while reducing the number of tool adjustment requirements.
-
Material Waste and Efficiency
Through 5-axis machining, producers attain two benefits: They need reduced material amounts, which results in decreased waste during production.
Spending time in a 3-axis machine to reposition the tool results in higher levels of material being wasted.
When to Choose 3-Axis machining
You need straightforward, cost-effective machining.
Fundamental cuts and drilling operations are the only machining requirements for the selected materials.
The simple flat shapes on your design remain completely unobstructed to view.
When to Choose 5-Axis machining
Your parts have complex geometries.
The combination of boosted manufacturing speed and precise results forms the core reason for switching to this technology.
Your industry requires high-precision components.
Conclusion
The 3-axis method suits basic parts manufacturing while keeping costs low yet some features are beyond its reach whereas five-axis enables advanced complex designs under stringent precision requirements. The three factors of affordability and production efficiency and part complexity should direct your equipment selection.
FAQs
-
Does continuous 5-axis machine equipment superiority exist over 3-axis machine equipment?
Not always. The required investment amounts to the complexity of product design together with production needs of the company.
The creation of complex shape components remains restricted for 3-axis machines.
The multi-stage setup procedure of production generates greater errors while raising manufacturing expenses.
-
The total expenses for a 5-axis machining system exceed those of standard 3-axis machining operations.
The higher price of five-axis machines enables shortened task times for workers even though processes operate at faster speeds.
-
The aerospace industry, medical sector, and automobile industry achieve the most benefits from 5-axis machining operations.
The extensive part-dimensional complexity requirements benefit the aerospace sector, medical industry, and automotive domain to the maximum extent.
-
Software requirements which must be in place for 5-axis machining success are defined by what specific elements?
The popular choices of CAM software for this sector include Mastercam Fusion 360 and Siemens NX.
